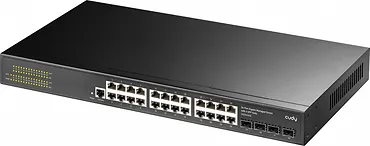

Przełącznik GS2024S2 L2 24xGE 4xSFP

GS 2024S2 24-portowy gigabitowy zarządzalny przełącznik z 4 gniazdami SFP

• 24 porty Gigabit Ethernet + 4 porty Gigabit SFP + 1 port konsoli
• Obsługa IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
• Porty Ethernet obsługują adaptacyjne 10/100/1000M
• Tryb przekazywania Storage & Forwarding
• Konstrukcja bez wentylatora, naturalne chłodzenie, montaż w stojaku 1U
• Obsługa uwierzytelniania portu 802.1x, obsługa uwierzytelniania AAA, obsługa uwierzytelniania TACACS +
• Obsługa zarządzania WEB, TELNET, CLI, SSH, SNMP, RMON

• Trunk
• Hybrid
• Support VLAN division based on port, protocol,
• and MAC address, VLAN tunnel
• Support GVRP dynamic VLAN registraon
• Voice VLAN

• IEEE802.3 (Ethernet)
• IEEE802.3u (Rapid Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3z (Gigabit Ethernet Optic Fiber)
• IEEE802.3x (Flow Control)
• IEEE 802.3az (Energy-efficient Ethernet)
• IEEE 802.3ad (Link aggregation)
• IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)
• IEEE 802.1D Spanning Tree Protocol STP
• IEEE 802.1w Rapid Spanning Tree Protocol RSTP
• IEEE 802.1s Multiple Spanning Tree Protocol MSTP
• IEEE 802.1Q (Virtual LAN)
• IEEE 802.1p (VLAN Label)
• IEEE 802.1X (User authentication)

• Based on 802.1p (COS) classificaon
• Based on DSCP classificaon
• Classificaon based on source IP, desnaon IP,
• and port number
• Support SP, WRR scheduling strategy
• Support flow rate limit CAR

• DOS Defense
• Support CPU protecon and limits the rate of sending
• CPU packets
• ARP binding (IP, MAC, PORT binding)

• CLI: Support serial port command line management
• SSH: Support SSHv1/2 remote management
• TELNET: Support telnet remote management
• WEB: Support Layer 2 setings, Layer 2 and Layer 3 monitor
• SNMP: SNMP V1/V2/V3; Support trap: ColdStart, WarmStart, LinkDown, LinkUp
• RMON: Support RMON v1
• Support DHCP Snooping, Option82, DHCP Server
• Support dynamic ARP detection
• Support TACACS+ certification
• Support DNS Seting
• Support port security seting
• Support MVR protocol
• Support cable detection VCT function
• Support UDLD protocol

• Port Management: Enable/Disable Port; Speed, Duplex, MTU Seting; Flow-control; Port Information Check
• Port Mirroring: Supports both side-way port mirroring
• Port Speed Limit: Support port rate limiting, the granularity of rate limiting is 32Kbps
• Port Isolation: Support port isolation Setings
• Storm Suppression: Supports unknown unicast, unknown multicast, and broadcast storm suppression
• Link Aggregation: Support static manual aggregation; Support LACP dynamic aggregation; Access
• MAC: Support static addition, deletion; MAC address learning limit; Support dynamic aging time setting
• Spanning Tree: 802.1D Spanning Tree Protocol (STP); 802.1w Rapid Spanning Tree Protocol(RSTP); 802.1s Mul Spanning Tree Protocol (MSTP)
• Multicast: Support static addition, deletion, IGMP-snooping; Support MLD-Snooping; Support v1/2/3 dynamic multicast monitor
• DDM: Support SFP/SFP+DDM

• Routing Function: Static routing
• IP: IPV4, IPV6 Interface
• Support ARP

• Przełącznik
• Przewód zasilający
• Kabel szeregowy
• Instrukcja obsługi
• Certyfikat jakości
• Karta gwarancyjna
• 2 x Ucho montażowe

AC 100-240V

440 x 204 x 44 mm

• Temperatura pracy: -10~50°C
• Temperatura przechowywania: -40~70°C
• Wilgotność robocza: 10% ~ 90% bez kondensacji
• Temperatura przechowywania: 5% ~ 90% bez kondensacji
