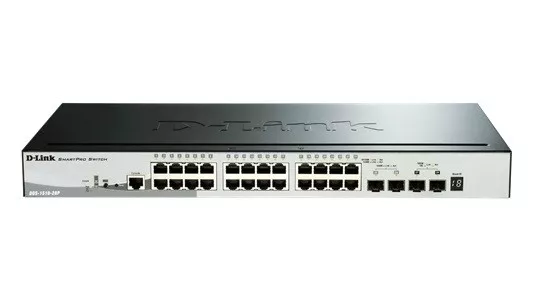

D-Link Przełącznik DGS-1510-28P Switch 24GE PoE 4SFP

Virtual Stacking Support:

• D-Link Single IP Management
• Up to 32 devices per virtual stack
• Up to 20G stacking bandwidth

Physical Stacking:

• Supports Duplex Chain/Ring topology
• Up to 40G stacking bandwidth full duplex
• Up to 6 units per stack

• 802.1Q Tagged VLAN
• 4K VLAN Groups
• Configurable VID: 0~4094
• GVRP
• VLAN Wizard
• Asymmetric VLAN
• Auto Voice VLAN
• Auto Surveillance VLAN 2.1
• MAC-based VLAN
• Protocol-based VLAN

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• 802.3ae 10 GbE
• IEEE 802.3x Flow Control for Full-Duplex Mode

• 802.1p Quality of Service
• Queue Handling
• Strict Priority Queue (SPQ)
• Weighted Round Robin (WRR)
• Deficit Round Robin (DRR)
• SPQ + WRR 8 queues per port
• Bandwidth Control
• Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)

CoS based on:

• 802.1p priority
• VLAN
• MAC address
• Ether type
• IP address
• DSCP
• Protocol type
• TCP/UDP port number
• DSCP of IPv6 Traffic Class
• IPv6 flow label

• Port Security
• Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control
• Dynamic ARP Inspection
• D-Link Safeguard Engine
• DHCP Server Screening
• ARP Spoofing Prevention
• Max. 64 entries SSH
• Supports v2
• Supports IPv4/IPv6 BPDU Attack Protection
• DoS Attack Prevention
• SSL
• Supports v1/v2/v3
• Supports IPv4/IPv6 Traffic Segmentation
• IP-MAC-Port Binding
• DHCP snooping
• IP Source Guard
• Dynamic ARP Inspection
• IPv6 DHCP Guard
• IPv6 RA Guard
• IPv6 Snooping
• IPv6 Source Guard
• IPv6 ND Inspection

• Command Line Interface (CLI)
• Telnet Server
• TFTP Client
• IPv6 Neighbor Discovery
• Configurable MDI/MDIX
• SNMP
• Supports v1, v2c, v3
• SNMP Trap
• System Log
• Max. 10,000 log entries
• Debug command
• Multiple images
• DHCP Server
• DHCP Client
• Surveillance mode
• DHCP Client
• D-Link Network Assistant support
• SNTP
• ICMPv6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• RMON v1
• LLDP, LLDP-MED
• DHCP relay
• Web-based GUI
• NTP
• Telnet client (supports CLI only)
• PD-Alive (PoE models only)

• MAC Address Table: Up to 16,384
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes
• IGMP Snooping
• IGMP v1/v2 Snooping
• IGMP v3 awareness
• Supports 512 IGMP groups
• Supports 128 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• Host-based IGMP Snooping Fast Leave MLD Snooping
• Supports MLD v1/v2
• Supports 512 groups
• Supports 128 Static Multicast Addresses
• Per VLAN MLD Snooping
• Host-based MLD Fast Leave
• MLD Snooping Querier
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• Loopback Detection v4.07
• 802.3ad Link Aggregation
• Max. 32 groups per device/8 ports per group
• Port Mirroring
• Support 4 mirroring groups
• One-to-One, Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all unregistered groups
• Filters all unregistered groups
• Ethernet Ring Protection Switching (ERPS)

• ARP
• 256 Static ARP
• Supports Gratuitous ARP
• IPv6 Neighbour Discovery (ND)
• 16 IP interfaces
• Default Routing
• Static Routing
• 64 IPv4 Static Route Entries
• 32 IPv6 Static Route Entries
• UDP helper

100 - 240 VAC 50/60 Hz

440 x 210 x 44 mm

• Temperatura pracy: -5 do 50 C (23 do 122 F)
• Temperatura przechowywania: -20 do 70C (-4 do 158F)
• Wilgotność pracy: 0% do 95% bez kondensacji
• Wilgotność przechowywania: 0% do 95% bez kondensacji

• Standard PoE: IEEE 802.3af, 802.3at
• Porty PoE: 1 - 24: do 30 W
• Maksymalny budżet PoE: 193 W

• CE
• FCC
• C-Tick
• VCCI
• BSMI
• CCC
• IPv6 Ready Logo Phase 2
• cUL
• CB
